BAUDOUIN ENGINE GENERATOR
B550-E5
400/230 V, 50 Hz, 3-phase
DMH power generator with Baudouin 6M21G550/5 engine.
PRIME OUTPUT500 kVA
STANDBY OUTPUT550 kVA

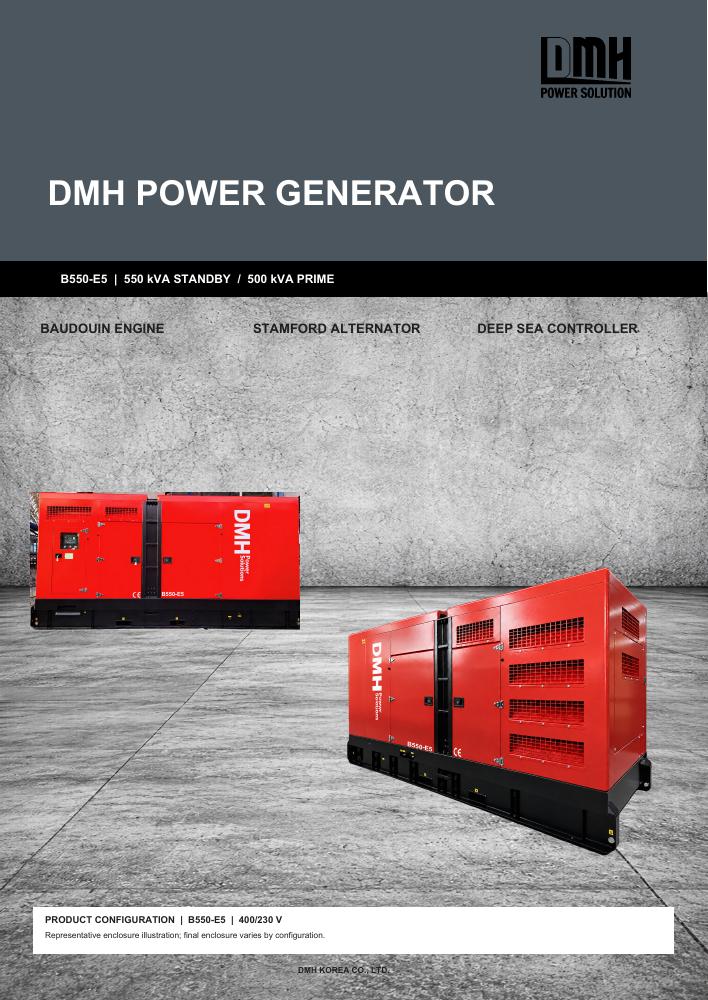

4-page product brochure · PDF
Enquire about this model →Technical Specifications
Engine6M21G550/5
Voltage / frequency400/230 V, 50 Hz, 3-phase
Power factor0.8
Rated speed / cooling1,500 rpm / water-cooled
Stamford alternatorS5L1D-D4
Alternator selectionSource Match
ControllerDSE7320 (as quoted)
EnclosureSoundproof type
Final winding, AVR, enclosure dimensions, weight and tank capacity are subject to the approved configuration. Images are representative; see the brochure for rating basis and details.
