BAUDOUIN ENGINE GENERATOR
B1650-E5
400/230 V, 50 Hz, 3-phase
DMH power generator with Baudouin 12M33G1650/5 engine.
PRIME OUTPUT1,500 kVA
STANDBY OUTPUT1,650 kVA

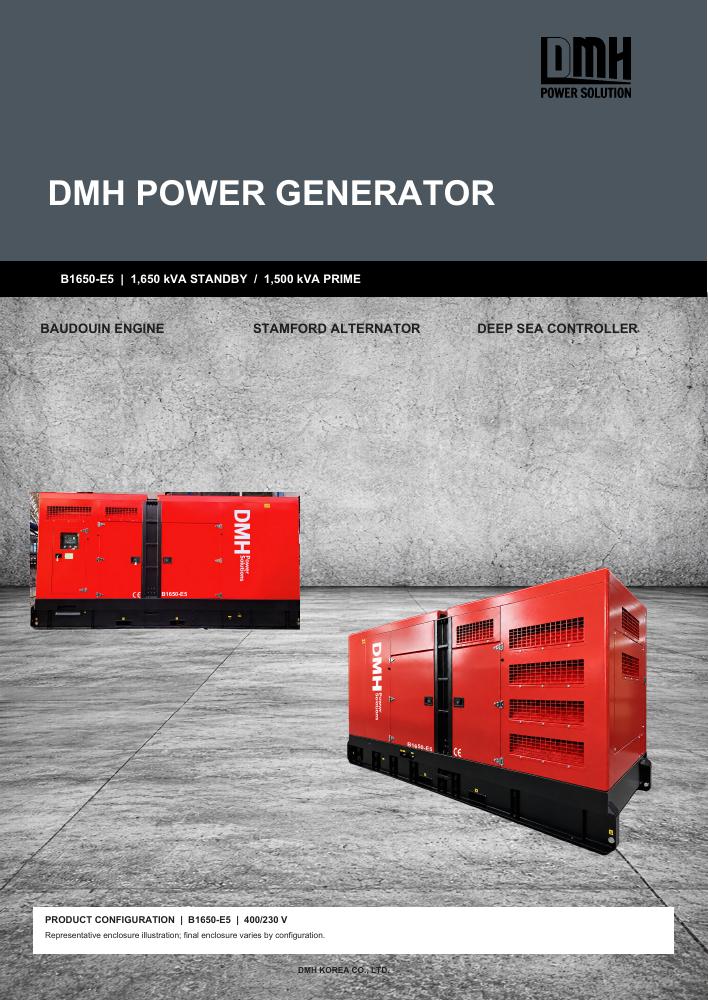

4-page product brochure · PDF
Enquire about this model →Technical Specifications
Engine12M33G1650/5
Voltage / frequency400/230 V, 50 Hz, 3-phase
Power factor0.8
Rated speed / cooling1,500 rpm / water-cooled
Stamford alternatorS7L1D-D4
Alternator selectionEstimated Match
ControllerDSE7320 (as quoted)
EnclosureSoundproof type
The Stamford pairing is an estimated match and requires final confirmation. Final winding, AVR, enclosure dimensions, weight and tank capacity are subject to the approved configuration. Images are representative; see the brochure for rating basis and details.
